Ground based detect and alert system
Iris Automation pioneered Casia I and Casia X, the first on-board, autonomous commercial collision avoidance safety systems for unmanned aircraft systems (UAS). Casia G leverages the same AI and computer vision technology – but stationary – to detect aircraft as they approach your UAS operation.
Safety at the core
Protect airspace for uncrewed air vehicles and crewed aircraft to operate safely. Casia G features extremely high detection rates for reliable and predictable performance.

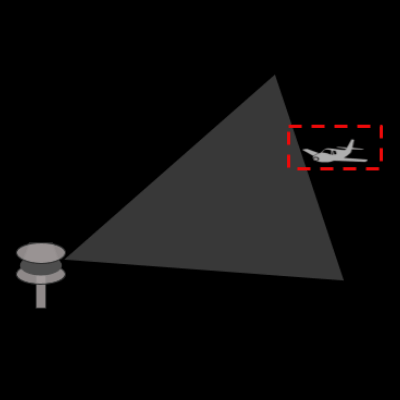

Detect intruder aircraft
Full optical, 360° field of view aircraft detection, classification (small plane, helicopter, drone, etc.) and alerting system
Gain situational awareness
Casia G can be integrated with your existing situational awareness tool to provide your Remote Pilot in Command (RPIC) access to all information from one system

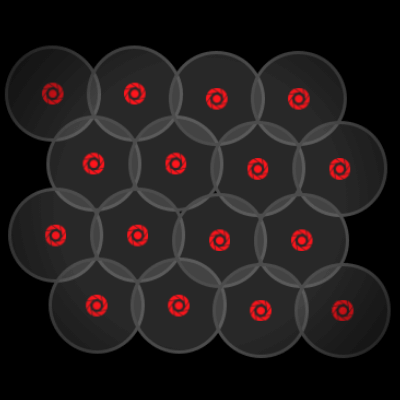

Network for unlimited range
Leverage multiple Casia G nodes in the form of a mesh network to cover large areas and gain additional time to move UAS to safe zones
TECHNICAL SPECIFICATIONS
Range: Multi-node network: Unlimited
Single-node Max Range: 2866m
Single-node Average Range: 2011m
Temp: 0 to 60 degrees centigrade
Weight: 4 kg
Conditions: Daytime Visual Meteorological Conditions
Power: 65W nominal, 70W peak, 12-36V
Mount options: Various (wall, pole, etc.)
Dimensions: 14″L x 11.5″W x 6″H per node
Operational assurance

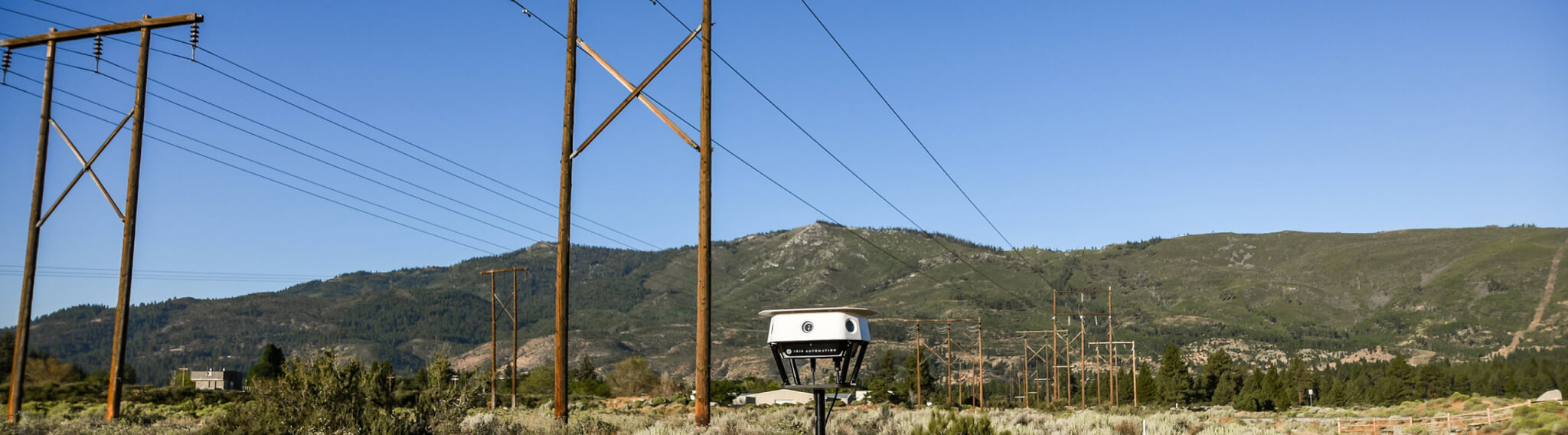

Never tired, bored, or distracted – Casia G is a ground based surveillance system that continually monitors the airspace to ensure your UAS operation is safe from intruder aircraft.
Turnkey solution
Installation and maintenance provided by Iris Automation support engineers
Reserves UAS payload
Without the need for onboard safety sensors, UAS power and payload capacity is made available
Scalable operations
Cost-effective with minimal management overhead. RPIC can manage multiple drones and increase the scope and efficiency of operations
Unlimited Coverage
Add additional Casia G nodes to create a larger network of coverage
No FCC approval required
Unlike radar, Casia G is a passive system and does not need an FCC approval
The Casia G ecosystem
See how Casia G is integrated into the Aerieport autonomous remote drone nesting solution from our partners at Volatus Aerospace. Designed to safely facilitate remote missions from anywhere in the world at any time. Aerieport recently secured the first ever approval from Transport Canada for BVLOS drone operations without a visual observer. Learn more >
The Casia G sensor is now seamlessly integrated into FlytNow, FlytBase’s flagship product, which enables drone operators to conduct fully automated BVLOS operations with drone-in-a-box systems from their remote command centers. On the FlytNow cloud-based dashboard, users can view Casia G’s operational radius as well as vital details such as the type of intrusive aircraft, live telemetry, and map location to ensure safe, collision-free flights.
Integrated with Kongsberg Geospatial’s advanced Situational Awareness display, specifically tailored for the Casia G sensor, this will display non-cooperative aircraft detection and alert UAS operators to intrusion into the Casia G surveillance area and can provide a single user interface for a correlated airspace picture.
Data from Casia G systems are now integrated into the OneSky UTM. The integrated technology will empower users with best-of-breed data and analytics to enhance flight safety and provide situational awareness for BVLOS flights all within the OneSky UTM portal. Learn more about this integration and the OneSky Future of Flight program.
